1.78inch AMOLED Displays

1.78inch AMOLED Displays Featured Image
  • 1.78inch AMOLED Displays

Short Description:

1.78inch  368*448 dots AMOLED Display MD-A1D78T-011 Notes(AMOLED): 1. Display Type: 1.78″368*448 LTPS-AMOLED(Oncell); 2. Driver IC:FT2308 TP IC:CHSC5816 3. W/O CG Luminance: 500cd/m2(TYP),450cd/m2(MIN); 4. White (X,Y): x=0.29±0.02,y=0.31±0.02; 5. NTSC:100%typ; 6. Viewing Direction L/R/U/D: 88/88/88/88; 7.General Tolerance: ±0.20 ; Unless Otherwise Specified Tolerance of Radius:R0.3; 8.Flatness AMOLED bottom side≤0.25mm; 9.CONFORMITY WITH ROHS & HALOGEN FREE REQUIREMENT; 10.OPERATIN...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Display type: AMOLED
  • Diagonal length: 1.78inch
  • Recommended Viewing Direction: ALL
  • Dot arrangement: 368(R.G.B)*448 Dot
  • Module size (W*H*T): 35.3*43.5*2.55mm
  • Active area (W*H): 28.70*34.94mm
  • Pixel size (W*H): 0.078*0.078mm
  • Drive IC: FT2308
  • Interface Type: LCD:QSPI TP:I2C
    • Download as PDF

    Product Detail

    1.78inch  368*448 dots AMOLED Display

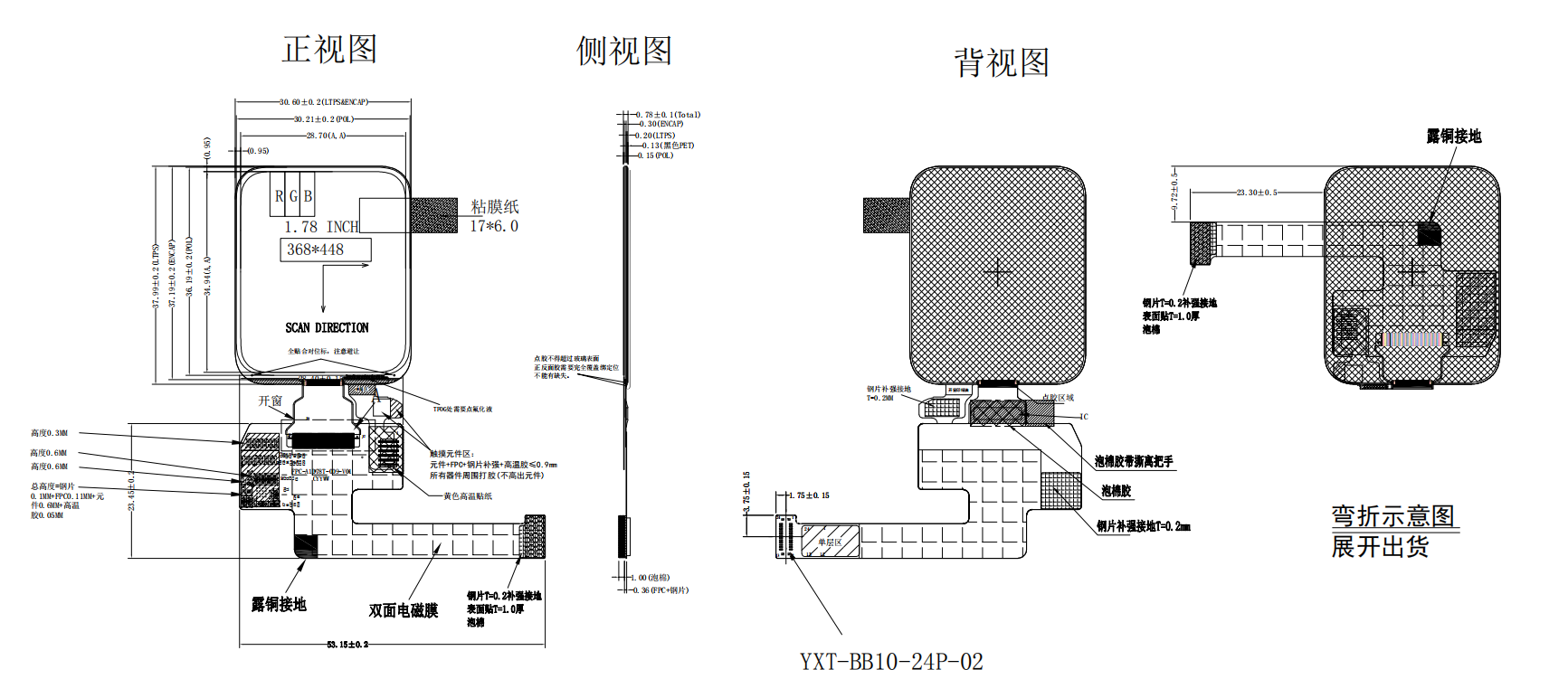

    1.78inch AMOLED Drawing

    MD-A1D78T-011 Notes(AMOLED):
    1. Display Type: 1.78″368*448 LTPS-AMOLED(Oncell);
    2. Driver IC:FT2308 TP IC:CHSC5816
    3. W/O CG Luminance: 500cd/m2(TYP),450cd/m2(MIN);
    4. White (X,Y): x=0.29±0.02,y=0.31±0.02;
    5. NTSC:100%typ;
    6. Viewing Direction L/R/U/D: 88/88/88/88;
    7.General Tolerance: ±0.20 ;
    Unless Otherwise Specified Tolerance of Radius:R0.3;
    8.Flatness AMOLED bottom side≤0.25mm;
    9.CONFORMITY WITH ROHS & HALOGEN FREE REQUIREMENT;
    10.OPERATING TEMPERATURE:-20°C TO 70°C;
